Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|

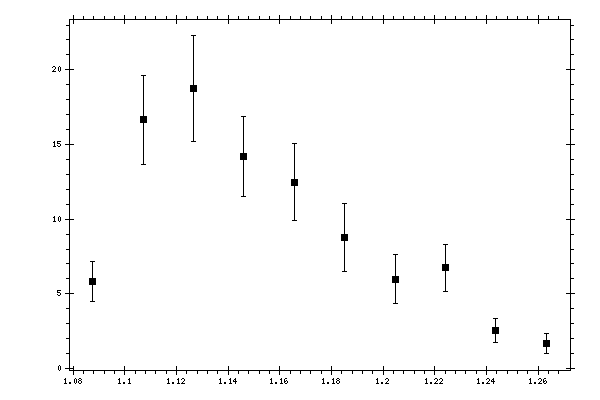

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.08759 | 5.80503 | 1.33775 |
| 1.1071 | 16.6581 | 2.96838 |
| 1.12661 | 18.7404 | 3.53481 |
| 1.14612 | 14.1872 | 2.68949 |
| 1.16563 | 12.4858 | 2.60362 |
| 1.18514 | 8.77394 | 2.24912 |
| 1.20465 | 5.98095 | 1.63409 |
| 1.22416 | 6.74242 | 1.56403 |
| 1.24367 | 2.52527 | 0.812798 |
| 1.26318 | 1.66993 | 0.641015 |
