Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|

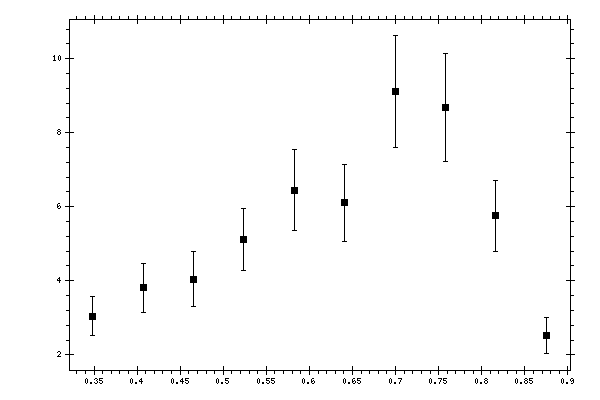

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.348394 | 3.04774 | 0.535787 |
| 0.406904 | 3.80954 | 0.659714 |
| 0.465412 | 4.04136 | 0.737405 |
| 0.523921 | 5.1211 | 0.837716 |
| 0.58243 | 6.44907 | 1.08739 |
| 0.640939 | 6.10252 | 1.03861 |
| 0.699448 | 9.11008 | 1.50702 |
| 0.757958 | 8.68827 | 1.45682 |
| 0.816467 | 5.75885 | 0.957118 |
| 0.874976 | 2.522 | 0.476734 |
