Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

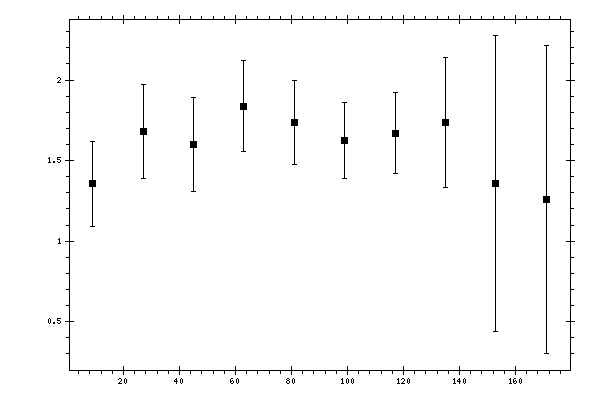

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.35627 | 0.263272 |
| 27 | 1.68057 | 0.289973 |
| 45 | 1.59828 | 0.290724 |
| 63 | 1.83752 | 0.283334 |
| 81 | 1.73437 | 0.261718 |
| 99 | 1.62574 | 0.23612 |
| 117 | 1.67099 | 0.252896 |
| 135 | 1.73757 | 0.405346 |
| 153 | 1.35565 | 0.918708 |
| 171 | 1.25942 | 0.954783 |
