Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

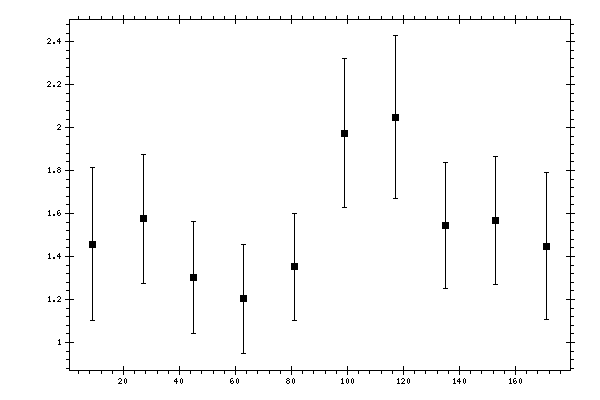

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.45813 | 0.357774 |
| 27 | 1.57554 | 0.299279 |
| 45 | 1.30194 | 0.259096 |
| 63 | 1.20413 | 0.253899 |
| 81 | 1.35143 | 0.248158 |
| 99 | 1.97493 | 0.347931 |
| 117 | 2.04928 | 0.377819 |
| 135 | 1.54357 | 0.291918 |
| 153 | 1.56888 | 0.297114 |
| 171 | 1.44801 | 0.343141 |
