Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|

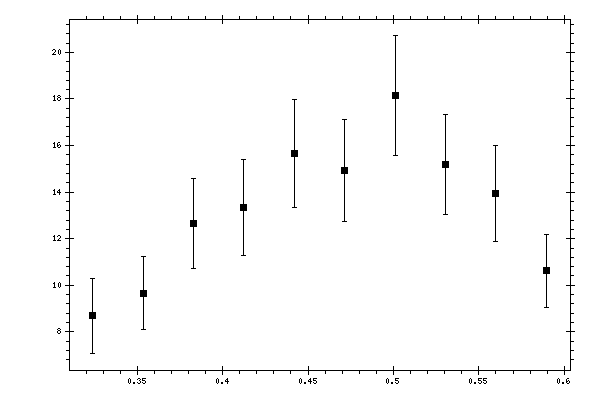

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.323895 | 8.68349 | 1.59663 |
| 0.353404 | 9.66777 | 1.57637 |
| 0.382912 | 12.6375 | 1.93709 |
| 0.412421 | 13.3327 | 2.06782 |
| 0.441931 | 15.6729 | 2.3223 |
| 0.47144 | 14.926 | 2.19942 |
| 0.500948 | 18.1453 | 2.56449 |
| 0.530457 | 15.1971 | 2.14757 |
| 0.559967 | 13.9479 | 2.05016 |
| 0.589476 | 10.6162 | 1.57162 |
