Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

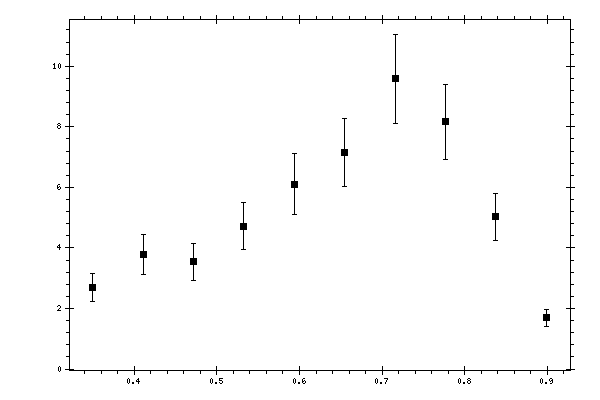

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.349644 | 2.69751 | 0.467238 |
| 0.410654 | 3.77642 | 0.65017 |
| 0.471662 | 3.53594 | 0.59994 |
| 0.532672 | 4.72323 | 0.788929 |
| 0.593681 | 6.11008 | 1.00545 |
| 0.654689 | 7.14542 | 1.12013 |
| 0.715698 | 9.5843 | 1.46281 |
| 0.776707 | 8.16074 | 1.24273 |
| 0.837716 | 5.02457 | 0.777641 |
| 0.898725 | 1.6917 | 0.273312 |
