Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|

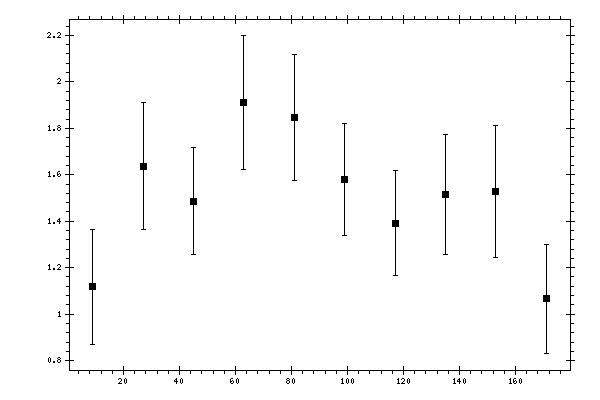

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.11869 | 0.247527 |
| 27 | 1.63739 | 0.274255 |
| 45 | 1.48696 | 0.231121 |
| 63 | 1.90946 | 0.288486 |
| 81 | 1.84716 | 0.272169 |
| 99 | 1.5804 | 0.240275 |
| 117 | 1.39143 | 0.226147 |
| 135 | 1.51401 | 0.25829 |
| 153 | 1.52874 | 0.28294 |
| 171 | 1.06623 | 0.233984 |
