Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

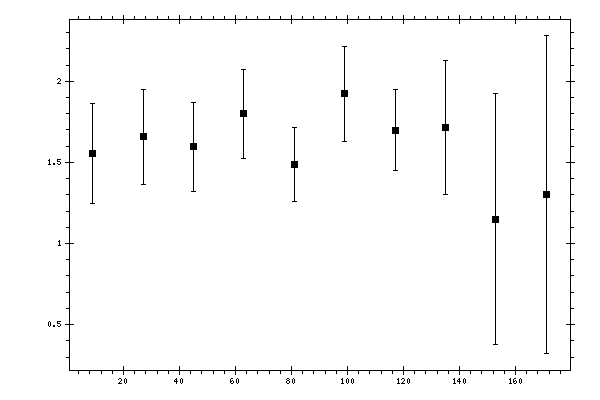

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.55538 | 0.308498 |
| 27 | 1.65777 | 0.293335 |
| 45 | 1.59669 | 0.275393 |
| 63 | 1.79881 | 0.276637 |
| 81 | 1.48727 | 0.229559 |
| 99 | 1.9231 | 0.291324 |
| 117 | 1.6977 | 0.249426 |
| 135 | 1.71764 | 0.412643 |
| 153 | 1.15066 | 0.776019 |
| 171 | 1.30215 | 0.978049 |
