Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

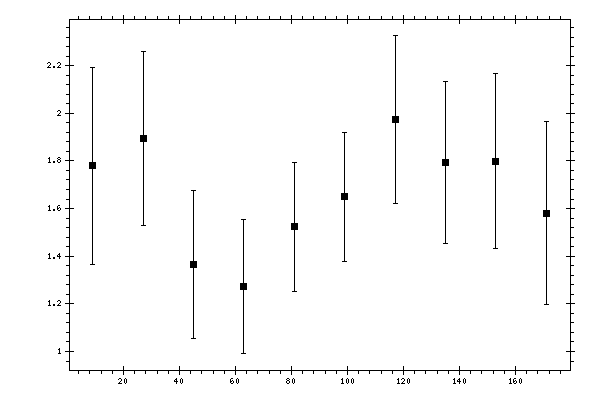

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.77967 | 0.413203 |
| 27 | 1.89237 | 0.365355 |
| 45 | 1.36434 | 0.31094 |
| 63 | 1.27416 | 0.281068 |
| 81 | 1.5239 | 0.271492 |
| 99 | 1.6501 | 0.27082 |
| 117 | 1.97237 | 0.352769 |
| 135 | 1.79296 | 0.338711 |
| 153 | 1.79909 | 0.366902 |
| 171 | 1.58074 | 0.385222 |
