Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.55 GeV | |
| Ebeam : | 5.75 GeV |
|

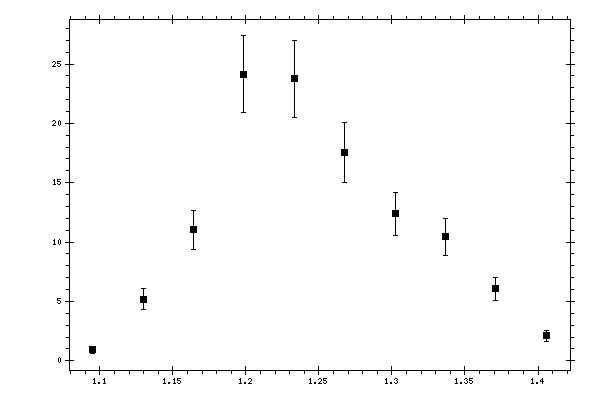

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09509 | 0.928164 | 0.284534 |
| 1.1296 | 5.20188 | 0.903206 |
| 1.16411 | 11.0224 | 1.62005 |
| 1.19862 | 24.1283 | 3.24517 |
| 1.23313 | 23.7563 | 3.23833 |
| 1.26764 | 17.5515 | 2.52362 |
| 1.30215 | 12.375 | 1.81483 |
| 1.33666 | 10.4511 | 1.56659 |
| 1.37117 | 6.06173 | 0.994836 |
| 1.40568 | 2.1053 | 0.454792 |
