Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

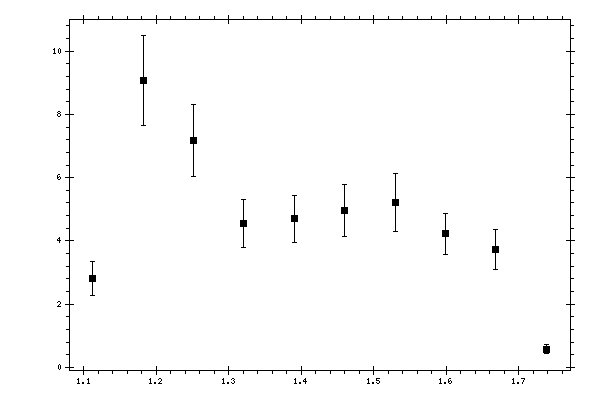

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11259 | 2.81186 | 0.550019 |
| 1.1821 | 9.07344 | 1.41003 |
| 1.25161 | 7.18308 | 1.13995 |
| 1.32112 | 4.55098 | 0.744918 |
| 1.39063 | 4.69738 | 0.741592 |
| 1.46014 | 4.96346 | 0.820285 |
| 1.52965 | 5.21673 | 0.923326 |
| 1.59916 | 4.22151 | 0.651867 |
| 1.66867 | 3.73187 | 0.631278 |
| 1.73818 | 0.582653 | 0.128829 |
