Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

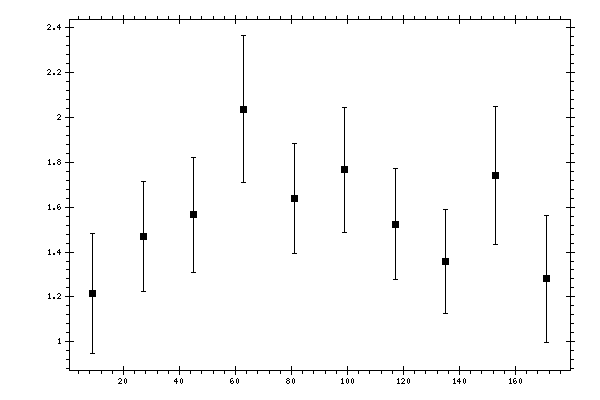

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 1.21539 | 0.266171 |
| 27 | 1.46792 | 0.24515 |
| 45 | 1.5659 | 0.256453 |
| 63 | 2.03593 | 0.327966 |
| 81 | 1.63822 | 0.244371 |
| 99 | 1.76698 | 0.27932 |
| 117 | 1.52481 | 0.246312 |
| 135 | 1.35637 | 0.231778 |
| 153 | 1.74037 | 0.307165 |
| 171 | 1.2799 | 0.281112 |
