Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|

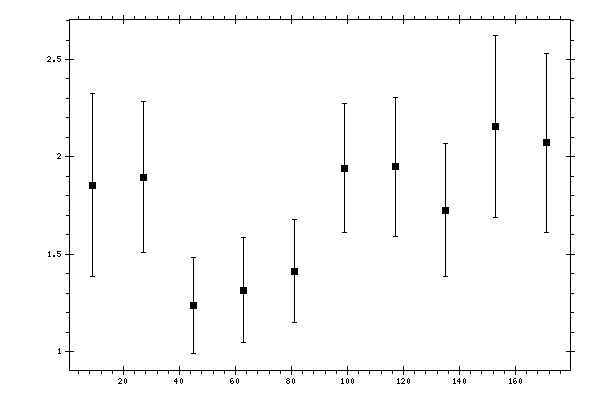

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 1.85442 | 0.470789 |
| 27 | 1.89622 | 0.388119 |
| 45 | 1.23907 | 0.246786 |
| 63 | 1.31528 | 0.269988 |
| 81 | 1.41327 | 0.264356 |
| 99 | 1.94253 | 0.331736 |
| 117 | 1.94927 | 0.356427 |
| 135 | 1.7266 | 0.342811 |
| 153 | 2.15587 | 0.465587 |
| 171 | 2.07134 | 0.457154 |
