Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

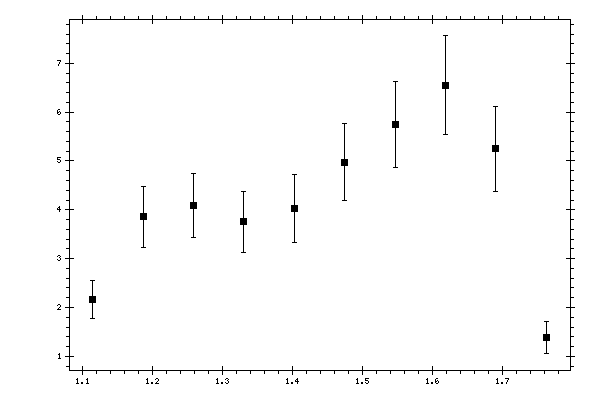

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11384 | 2.17159 | 0.390432 |
| 1.18585 | 3.85362 | 0.615753 |
| 1.25786 | 4.09118 | 0.662579 |
| 1.32987 | 3.75297 | 0.626866 |
| 1.40188 | 4.03089 | 0.692111 |
| 1.47389 | 4.97432 | 0.79241 |
| 1.5459 | 5.74937 | 0.879519 |
| 1.61791 | 6.55376 | 1.00869 |
| 1.68992 | 5.24634 | 0.861405 |
| 1.76193 | 1.38767 | 0.322936 |
