Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

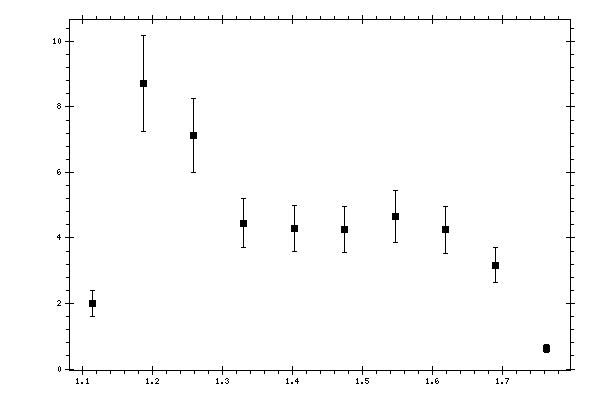

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11384 | 1.99636 | 0.393061 |
| 1.18585 | 8.71496 | 1.45595 |
| 1.25786 | 7.12603 | 1.13964 |
| 1.32987 | 4.44803 | 0.746693 |
| 1.40188 | 4.28225 | 0.707578 |
| 1.47389 | 4.25636 | 0.693308 |
| 1.5459 | 4.65588 | 0.789393 |
| 1.61791 | 4.24832 | 0.708871 |
| 1.68992 | 3.16909 | 0.539222 |
| 1.76193 | 0.627627 | 0.133571 |
