Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

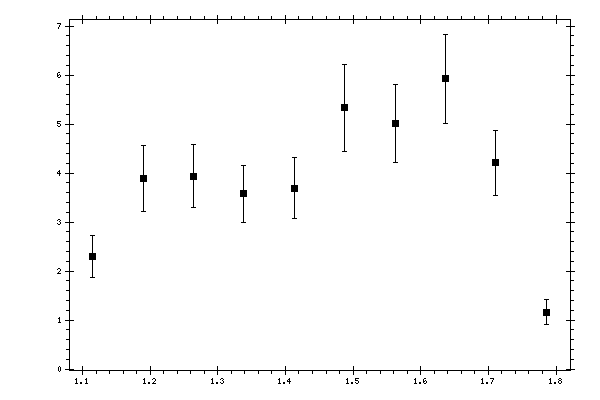

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11509 | 2.28984 | 0.42714 |
| 1.1896 | 3.88344 | 0.672349 |
| 1.26411 | 3.93813 | 0.641902 |
| 1.33862 | 3.57413 | 0.582545 |
| 1.41313 | 3.69216 | 0.618026 |
| 1.48764 | 5.33572 | 0.891739 |
| 1.56215 | 5.00768 | 0.800828 |
| 1.63666 | 5.92434 | 0.905563 |
| 1.71117 | 4.20863 | 0.668059 |
| 1.78568 | 1.16107 | 0.250246 |
