Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|

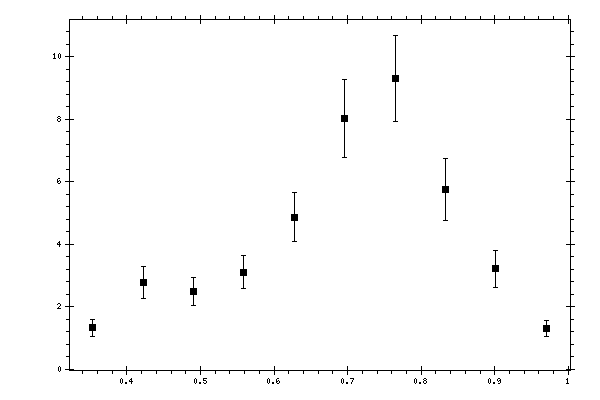

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.353395 | 1.31528 | 0.266715 |
| 0.421903 | 2.75838 | 0.509805 |
| 0.490413 | 2.49235 | 0.451941 |
| 0.558922 | 3.10145 | 0.531488 |
| 0.62743 | 4.85685 | 0.788337 |
| 0.695939 | 8.01335 | 1.251 |
| 0.764448 | 9.30741 | 1.38479 |
| 0.832958 | 5.73666 | 0.987675 |
| 0.901466 | 3.2085 | 0.600489 |
| 0.969975 | 1.2948 | 0.242609 |
