Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

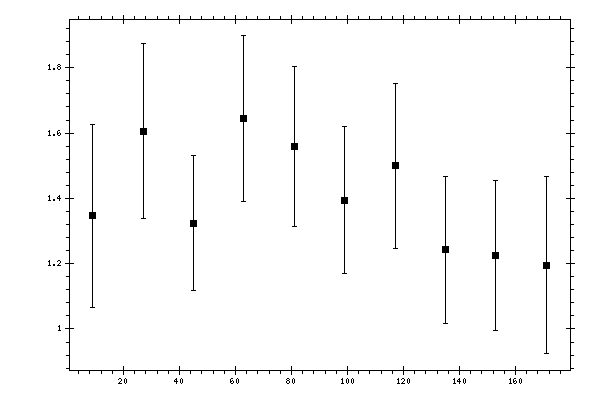

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.34635 | 0.279221 |
| 27 | 1.60591 | 0.267061 |
| 45 | 1.3237 | 0.206737 |
| 63 | 1.64395 | 0.253778 |
| 81 | 1.55919 | 0.244199 |
| 99 | 1.39477 | 0.224757 |
| 117 | 1.4995 | 0.253836 |
| 135 | 1.24244 | 0.225348 |
| 153 | 1.22389 | 0.22966 |
| 171 | 1.19594 | 0.269899 |
