Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.95 GeV | |
| Ebeam : | 5.75 GeV |
|

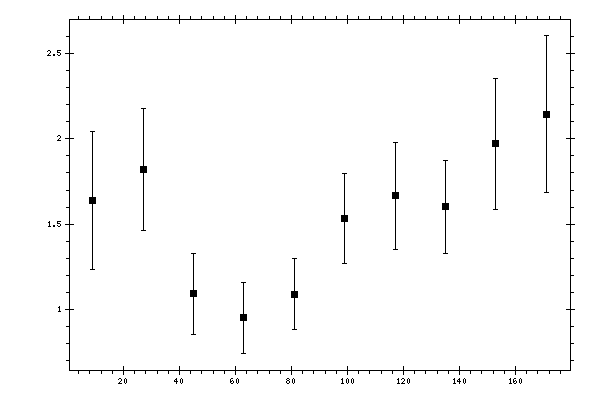

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 1.63903 | 0.407063 |
| 27 | 1.82028 | 0.356031 |
| 45 | 1.09055 | 0.240092 |
| 63 | 0.951317 | 0.207969 |
| 81 | 1.08966 | 0.206884 |
| 99 | 1.5321 | 0.262407 |
| 117 | 1.6665 | 0.313348 |
| 135 | 1.60251 | 0.272152 |
| 153 | 1.97096 | 0.386054 |
| 171 | 2.14538 | 0.45891 |
