Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

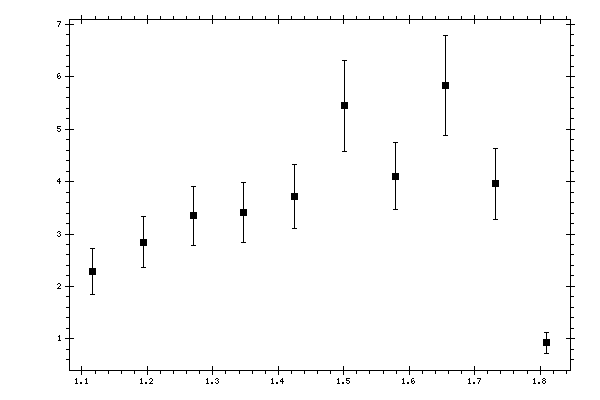

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11634 | 2.2892 | 0.438357 |
| 1.19335 | 2.84501 | 0.488472 |
| 1.27036 | 3.34681 | 0.563491 |
| 1.34737 | 3.41295 | 0.571009 |
| 1.42438 | 3.71273 | 0.605711 |
| 1.50139 | 5.44358 | 0.863342 |
| 1.5784 | 4.10101 | 0.638368 |
| 1.65541 | 5.83045 | 0.949064 |
| 1.73242 | 3.95417 | 0.686288 |
| 1.80943 | 0.927985 | 0.200481 |
