Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

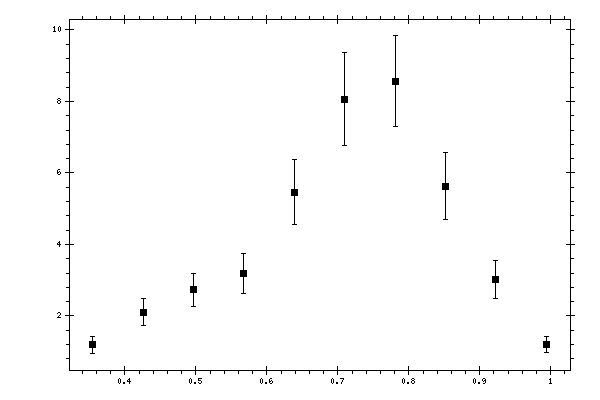

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.354645 | 1.19641 | 0.236615 |
| 0.425653 | 2.10339 | 0.374536 |
| 0.496662 | 2.73487 | 0.458123 |
| 0.567671 | 3.18146 | 0.558894 |
| 0.63868 | 5.45559 | 0.908398 |
| 0.709689 | 8.06873 | 1.29537 |
| 0.780698 | 8.56713 | 1.26823 |
| 0.851707 | 5.63303 | 0.92818 |
| 0.922716 | 3.02371 | 0.523377 |
| 0.993725 | 1.20077 | 0.220009 |
