Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

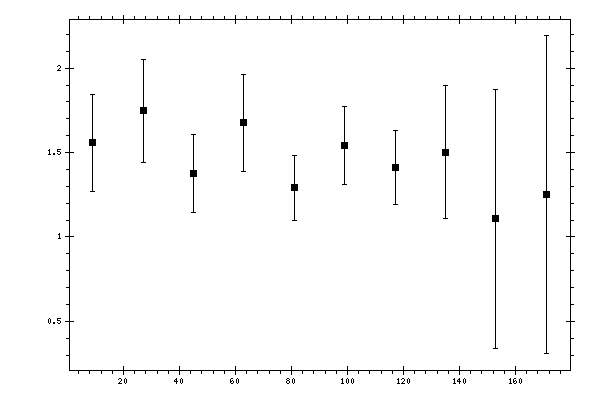

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.55746 | 0.286009 |
| 27 | 1.74758 | 0.30337 |
| 45 | 1.37617 | 0.231272 |
| 63 | 1.67652 | 0.286387 |
| 81 | 1.29068 | 0.19283 |
| 99 | 1.54153 | 0.231729 |
| 117 | 1.41325 | 0.21796 |
| 135 | 1.50261 | 0.393075 |
| 153 | 1.10822 | 0.767619 |
| 171 | 1.25163 | 0.940017 |
