Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3 — 3.5 GeV2 | |
|---|---|---|
| W : | 1.975 GeV | |
| Ebeam : | 5.75 GeV |
|

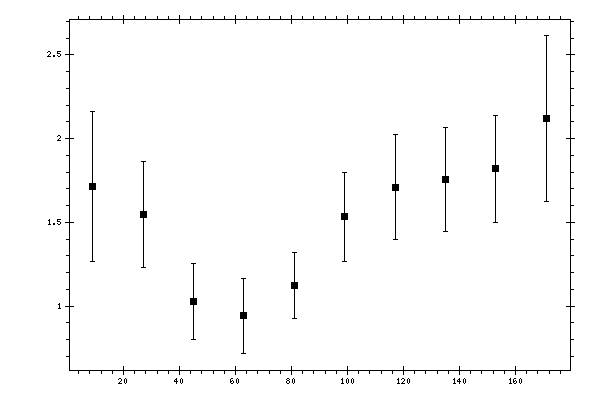

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 1.71227 | 0.448328 |
| 27 | 1.54657 | 0.318721 |
| 45 | 1.02711 | 0.227152 |
| 63 | 0.941104 | 0.221877 |
| 81 | 1.12409 | 0.195811 |
| 99 | 1.53278 | 0.2659 |
| 117 | 1.70943 | 0.313307 |
| 135 | 1.75701 | 0.311789 |
| 153 | 1.81895 | 0.320492 |
| 171 | 2.12005 | 0.49379 |
