Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|

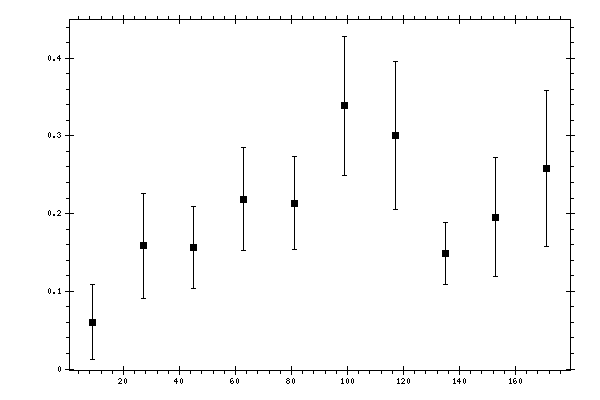

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.0603806 | 0.0485055 |
| 27 | 0.158611 | 0.0677874 |
| 45 | 0.1564 | 0.0529558 |
| 63 | 0.218334 | 0.0663388 |
| 81 | 0.213509 | 0.0601868 |
| 99 | 0.3389 | 0.0894091 |
| 117 | 0.301032 | 0.0952383 |
| 135 | 0.148572 | 0.03949 |
| 153 | 0.195587 | 0.0771692 |
| 171 | 0.258324 | 0.100686 |
