Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

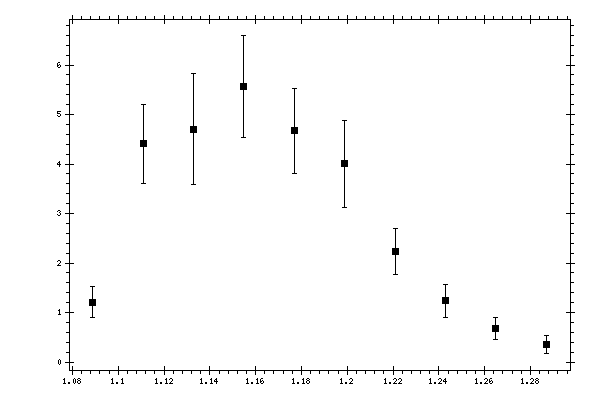

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08884 | 1.21076 | 0.318142 |
| 1.11085 | 4.40783 | 0.8007 |
| 1.13286 | 4.70273 | 1.11576 |
| 1.15487 | 5.56289 | 1.02565 |
| 1.17688 | 4.66888 | 0.863842 |
| 1.19889 | 4.00661 | 0.880303 |
| 1.2209 | 2.23357 | 0.468156 |
| 1.24291 | 1.23532 | 0.341042 |
| 1.26492 | 0.684234 | 0.221794 |
| 1.28693 | 0.357623 | 0.17695 |
