Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

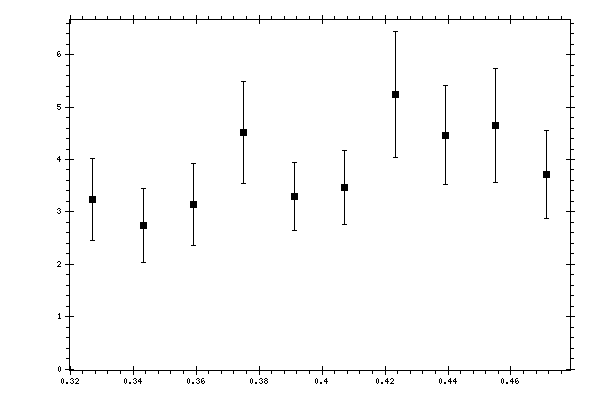

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.327145 | 3.23172 | 0.783042 |
| 0.343154 | 2.74157 | 0.704837 |
| 0.359163 | 3.14526 | 0.786713 |
| 0.375172 | 4.52252 | 0.972397 |
| 0.391181 | 3.29336 | 0.652499 |
| 0.40719 | 3.46526 | 0.703421 |
| 0.423199 | 5.24358 | 1.20012 |
| 0.439208 | 4.46805 | 0.941566 |
| 0.455217 | 4.65124 | 1.09118 |
| 0.471226 | 3.71027 | 0.837862 |
