Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

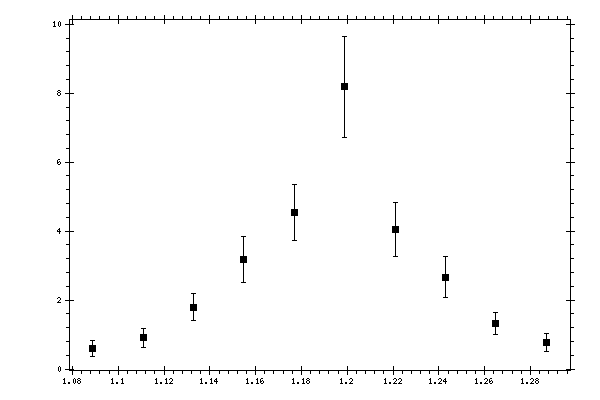

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.08884 | 0.585419 | 0.228055 |
| 1.11085 | 0.907703 | 0.279156 |
| 1.13286 | 1.79325 | 0.387986 |
| 1.15487 | 3.17327 | 0.661093 |
| 1.17688 | 4.53725 | 0.814204 |
| 1.19889 | 8.1948 | 1.46524 |
| 1.2209 | 4.04697 | 0.795884 |
| 1.24291 | 2.66544 | 0.604723 |
| 1.26492 | 1.31938 | 0.323027 |
| 1.28693 | 0.761044 | 0.26313 |
