Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.425 GeV | |
| Ebeam : | 5.75 GeV |
|

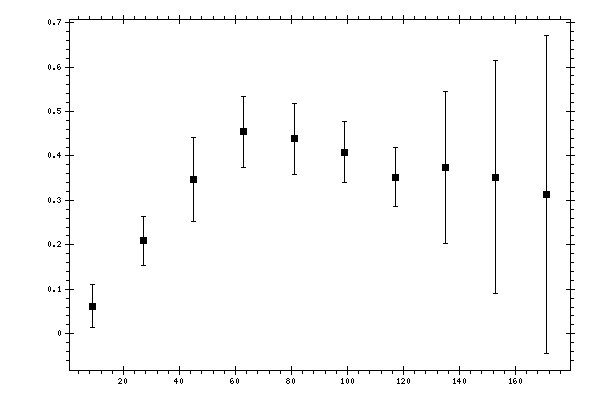

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.0618869 | 0.0480492 |
| 27 | 0.208804 | 0.0545647 |
| 45 | 0.34706 | 0.0947869 |
| 63 | 0.454325 | 0.0794449 |
| 81 | 0.438923 | 0.0796816 |
| 99 | 0.408474 | 0.06838 |
| 117 | 0.352204 | 0.0661928 |
| 135 | 0.374016 | 0.170449 |
| 153 | 0.352302 | 0.261917 |
| 171 | 0.313227 | 0.356915 |
