Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|

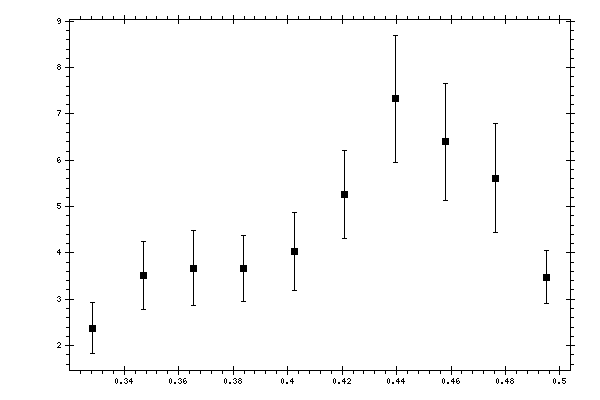

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.328395 | 2.37847 | 0.542432 |
| 0.346904 | 3.51699 | 0.740048 |
| 0.365413 | 3.67337 | 0.806046 |
| 0.383922 | 3.66341 | 0.710254 |
| 0.402431 | 4.02904 | 0.851099 |
| 0.42094 | 5.25541 | 0.948453 |
| 0.439449 | 7.32469 | 1.36213 |
| 0.457958 | 6.39647 | 1.271 |
| 0.476467 | 5.609 | 1.17643 |
| 0.494976 | 3.47528 | 0.566218 |
