Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.45 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

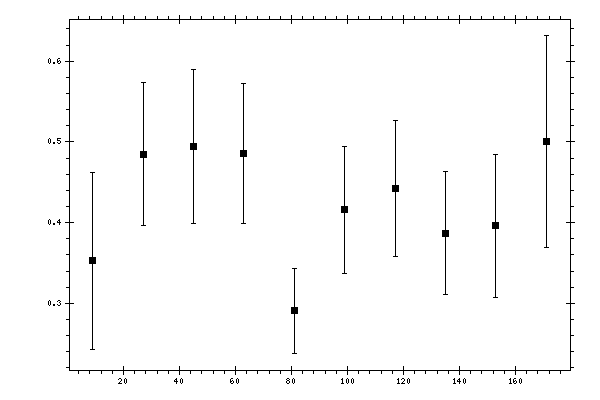

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.352635 | 0.109799 |
| 27 | 0.484883 | 0.0889631 |
| 45 | 0.493937 | 0.095452 |
| 63 | 0.485837 | 0.0868851 |
| 81 | 0.29089 | 0.0526957 |
| 99 | 0.41581 | 0.0789996 |
| 117 | 0.442291 | 0.0843227 |
| 135 | 0.387001 | 0.0763171 |
| 153 | 0.395913 | 0.0884992 |
| 171 | 0.500454 | 0.131001 |
