Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

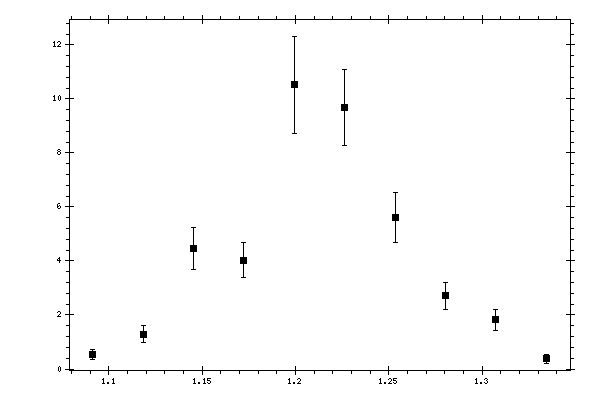

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.09134 | 0.52812 | 0.187353 |
| 1.11835 | 1.29213 | 0.313468 |
| 1.14536 | 4.45712 | 0.781142 |
| 1.17237 | 4.02416 | 0.648192 |
| 1.19938 | 10.5264 | 1.79167 |
| 1.22639 | 9.69252 | 1.4117 |
| 1.2534 | 5.62148 | 0.928215 |
| 1.28041 | 2.71333 | 0.494267 |
| 1.30742 | 1.8176 | 0.399448 |
| 1.33443 | 0.374079 | 0.153905 |
