Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

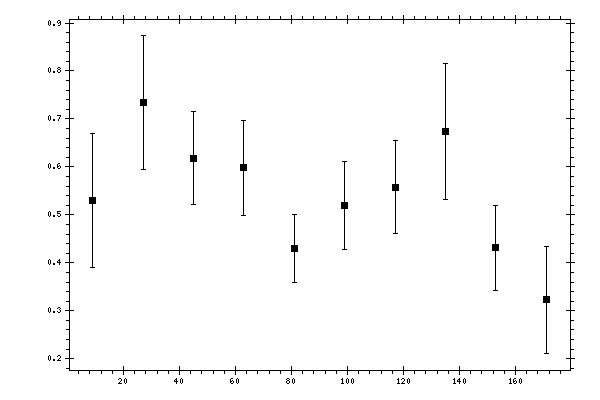

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.529753 | 0.139531 |
| 27 | 0.733702 | 0.139535 |
| 45 | 0.61832 | 0.0975792 |
| 63 | 0.598093 | 0.098877 |
| 81 | 0.429692 | 0.0713788 |
| 99 | 0.519096 | 0.0920408 |
| 117 | 0.557808 | 0.097527 |
| 135 | 0.674323 | 0.141398 |
| 153 | 0.431644 | 0.0884237 |
| 171 | 0.322611 | 0.110918 |
