Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.475 GeV | |
| Ebeam : | 5.75 GeV |
|

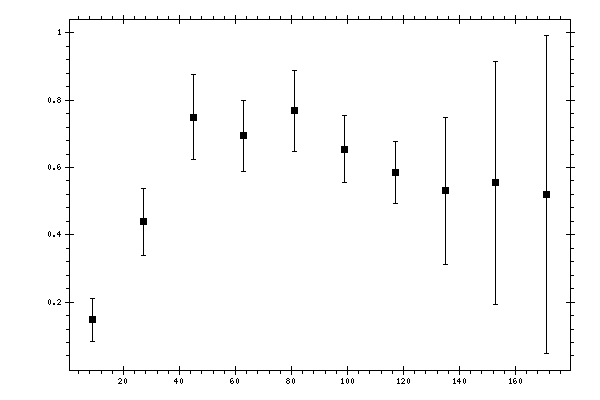

Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.148174 | 0.0638258 |
| 27 | 0.438277 | 0.0989127 |
| 45 | 0.748986 | 0.126199 |
| 63 | 0.693909 | 0.105021 |
| 81 | 0.768856 | 0.119766 |
| 99 | 0.654308 | 0.0997367 |
| 117 | 0.585723 | 0.0925601 |
| 135 | 0.530435 | 0.217882 |
| 153 | 0.554191 | 0.361303 |
| 171 | 0.519814 | 0.47148 |
