Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

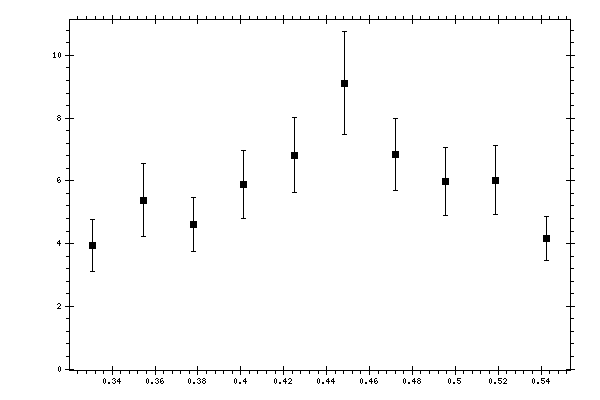

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 0.330895 | 3.94 | 0.826892 |
| 0.354403 | 5.38221 | 1.16876 |
| 0.377912 | 4.61998 | 0.859581 |
| 0.401421 | 5.88144 | 1.09609 |
| 0.42493 | 6.82048 | 1.18867 |
| 0.448439 | 9.11316 | 1.63394 |
| 0.471948 | 6.84912 | 1.15391 |
| 0.495457 | 5.97773 | 1.08495 |
| 0.518966 | 6.02582 | 1.08829 |
| 0.542475 | 4.15367 | 0.707811 |
