Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

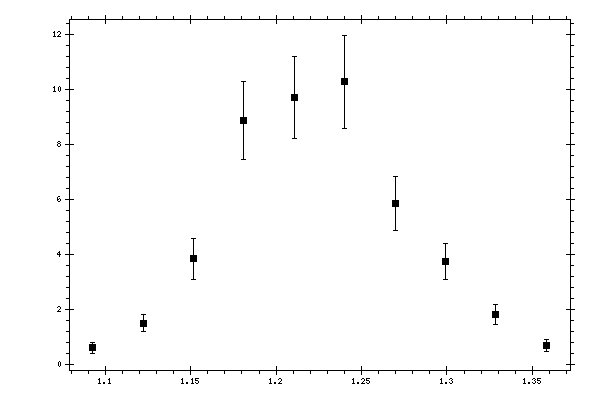

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09259 | 0.603407 | 0.197215 |
| 1.1221 | 1.50112 | 0.321796 |
| 1.15161 | 3.83566 | 0.749906 |
| 1.18112 | 8.85652 | 1.41571 |
| 1.21063 | 9.70058 | 1.491 |
| 1.24014 | 10.2602 | 1.67463 |
| 1.26965 | 5.83631 | 0.977137 |
| 1.29916 | 3.73278 | 0.643987 |
| 1.32867 | 1.80219 | 0.369786 |
| 1.35818 | 0.686505 | 0.2111 |
