Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.5 GeV | |
| Ebeam : | 5.75 GeV |
|

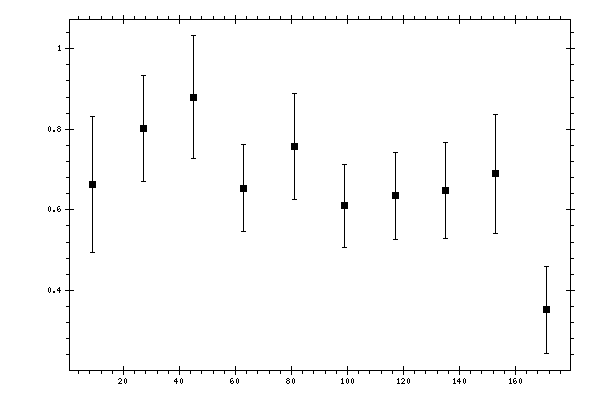

Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.66257 | 0.169643 |
| 27 | 0.802329 | 0.131612 |
| 45 | 0.879589 | 0.152449 |
| 63 | 0.654227 | 0.108409 |
| 81 | 0.757068 | 0.132131 |
| 99 | 0.609857 | 0.103649 |
| 117 | 0.634785 | 0.108158 |
| 135 | 0.648794 | 0.119386 |
| 153 | 0.689851 | 0.147669 |
| 171 | 0.352066 | 0.107895 |
