Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

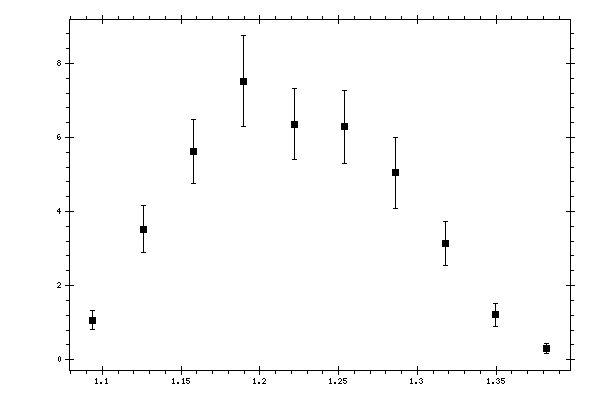

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09384 | 1.06756 | 0.250229 |
| 1.12585 | 3.52468 | 0.64274 |
| 1.15786 | 5.61931 | 0.869264 |
| 1.18987 | 7.52287 | 1.22555 |
| 1.22188 | 6.35894 | 0.962579 |
| 1.25389 | 6.29167 | 0.992643 |
| 1.2859 | 5.04463 | 0.9679 |
| 1.31791 | 3.13918 | 0.587619 |
| 1.34992 | 1.20954 | 0.308733 |
| 1.38193 | 0.301984 | 0.126862 |
