Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|

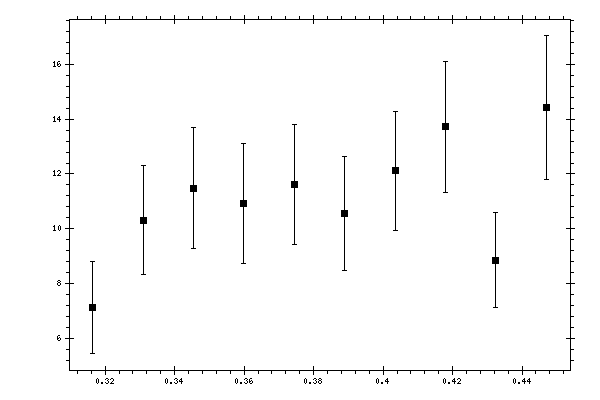

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.316395 | 7.1331 | 1.67212 |
| 0.330904 | 10.3199 | 1.98682 |
| 0.345413 | 11.4864 | 2.20526 |
| 0.359922 | 10.9244 | 2.18454 |
| 0.374431 | 11.6032 | 2.19541 |
| 0.38894 | 10.5623 | 2.08643 |
| 0.403449 | 12.1206 | 2.17518 |
| 0.417958 | 13.7223 | 2.39769 |
| 0.432467 | 8.85819 | 1.72487 |
| 0.446976 | 14.4159 | 2.6247 |
