Parameter (X axis): M(π+,π−), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,π−), mcb/GeV
Differential cross section, where M(π+,π−) is invariant mass of π+ and π−.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.525 GeV | |
| Ebeam : | 5.75 GeV |
|

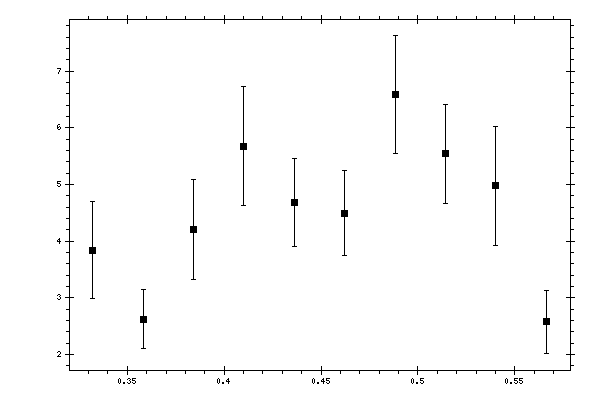

Observable quantity measured (Y axis): dσ/dM(π+,π−), mcb/GeV
Parameter (X axis): M(π+,π−), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,π−),
GeV |
dσ/dM(π+,π−),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 0.332144 | 3.83459 | 0.855338 |
| 0.358153 | 2.62217 | 0.521532 |
| 0.384163 | 4.2081 | 0.880104 |
| 0.410172 | 5.67792 | 1.0565 |
| 0.436181 | 4.67629 | 0.774566 |
| 0.46219 | 4.48772 | 0.750898 |
| 0.488199 | 6.58557 | 1.03782 |
| 0.514208 | 5.53875 | 0.869199 |
| 0.540217 | 4.97977 | 1.05146 |
| 0.566226 | 2.57398 | 0.552689 |
