Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.575 GeV | |
| Ebeam : | 5.75 GeV |
|

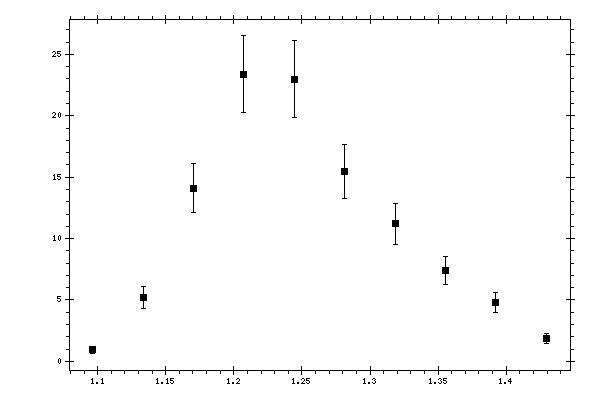

Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.09634 | 0.936779 | 0.268996 |
| 1.13335 | 5.17065 | 0.890838 |
| 1.17036 | 14.0941 | 2.00969 |
| 1.20737 | 23.3786 | 3.13252 |
| 1.24438 | 22.9899 | 3.11814 |
| 1.28139 | 15.4769 | 2.20559 |
| 1.3184 | 11.1931 | 1.65489 |
| 1.35541 | 7.37392 | 1.1456 |
| 1.39242 | 4.80594 | 0.834032 |
| 1.42943 | 1.86506 | 0.426006 |
