Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 2 — 2.4 GeV2 | |
|---|---|---|
| W : | 1.4 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

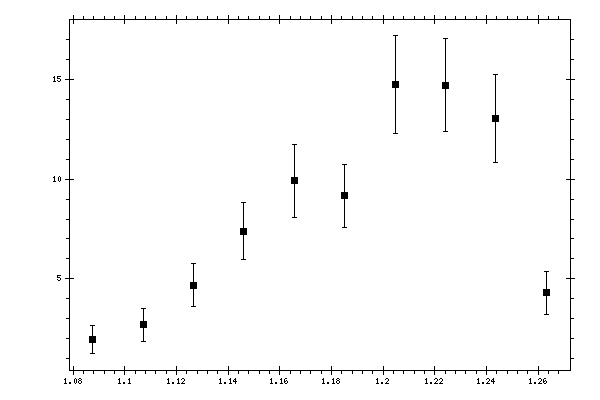

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.08759 | 1.97947 | 0.705509 |
| 1.1071 | 2.69081 | 0.812703 |
| 1.12661 | 4.68755 | 1.0822 |
| 1.14612 | 7.38761 | 1.43885 |
| 1.16563 | 9.9177 | 1.81943 |
| 1.18514 | 9.1723 | 1.58765 |
| 1.20465 | 14.7439 | 2.44365 |
| 1.22416 | 14.7209 | 2.32455 |
| 1.24367 | 13.0619 | 2.20762 |
| 1.26318 | 4.29824 | 1.07675 |
