Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

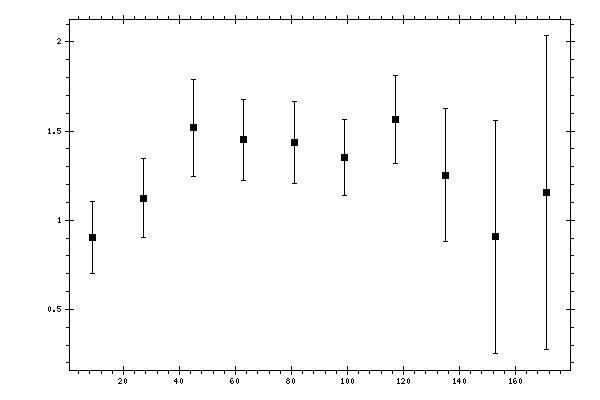

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.902144 | 0.203545 |
| 27 | 1.12447 | 0.222352 |
| 45 | 1.51776 | 0.271302 |
| 63 | 1.45054 | 0.228857 |
| 81 | 1.43719 | 0.228991 |
| 99 | 1.35223 | 0.211845 |
| 117 | 1.56556 | 0.244822 |
| 135 | 1.25341 | 0.375405 |
| 153 | 0.906455 | 0.651906 |
| 171 | 1.15499 | 0.878793 |
