Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.8 GeV | |
| Ebeam : | 5.75 GeV |
|

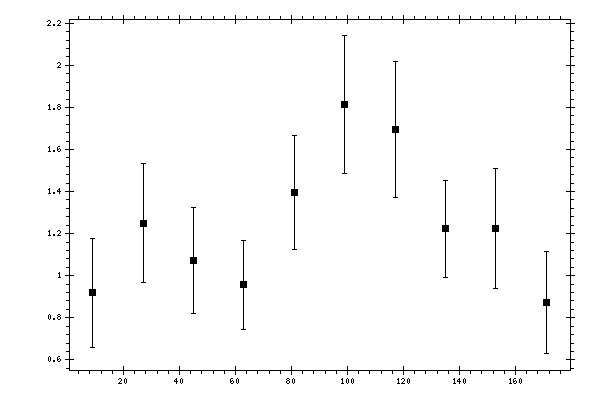

Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.
Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.918301 | 0.257602 |
| 27 | 1.24951 | 0.28178 |
| 45 | 1.07282 | 0.251863 |
| 63 | 0.957313 | 0.210867 |
| 81 | 1.39388 | 0.270623 |
| 99 | 1.8126 | 0.327654 |
| 117 | 1.69344 | 0.323885 |
| 135 | 1.22336 | 0.23103 |
| 153 | 1.22364 | 0.286256 |
| 171 | 0.874093 | 0.242232 |
