Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.85 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

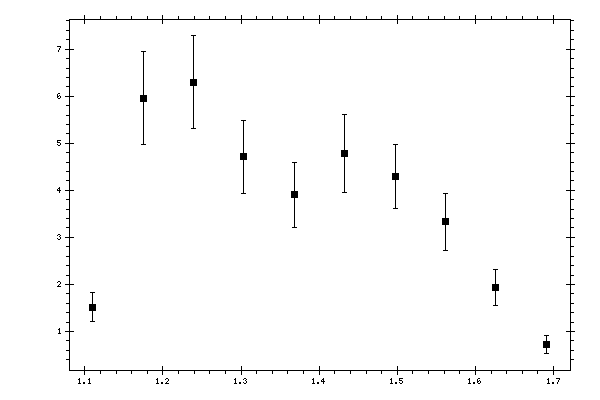

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11009 | 1.51326 | 0.311264 |
| 1.1746 | 5.95741 | 0.989471 |
| 1.23911 | 6.29453 | 0.988999 |
| 1.30362 | 4.70975 | 0.775505 |
| 1.36813 | 3.90172 | 0.687375 |
| 1.43264 | 4.7823 | 0.827416 |
| 1.49715 | 4.29576 | 0.682542 |
| 1.56166 | 3.33446 | 0.604607 |
| 1.62617 | 1.93285 | 0.385824 |
| 1.69068 | 0.722636 | 0.18302 |
