Parameter (X axis): θ(p), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(p))), mcb/rad
Differential cross section, where cos(θ(p)) is cosine of the azimuthal angle of p in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.875 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(p))), mcb/rad
Parameter (X axis): θ(p), deg |
Click here to get data in text file, delimited with tabs.

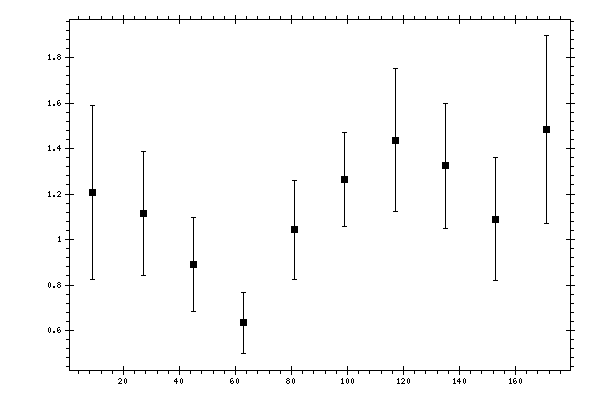

Measured data:
|
θ(p),
deg |
dσ/d(−cos(θ(p))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 1.20712 | 0.381724 |
| 27 | 1.11446 | 0.271091 |
| 45 | 0.890896 | 0.205419 |
| 63 | 0.634596 | 0.133904 |
| 81 | 1.04303 | 0.218405 |
| 99 | 1.26421 | 0.208404 |
| 117 | 1.43746 | 0.315102 |
| 135 | 1.32381 | 0.275417 |
| 153 | 1.08998 | 0.271816 |
| 171 | 1.48351 | 0.411994 |
