Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.

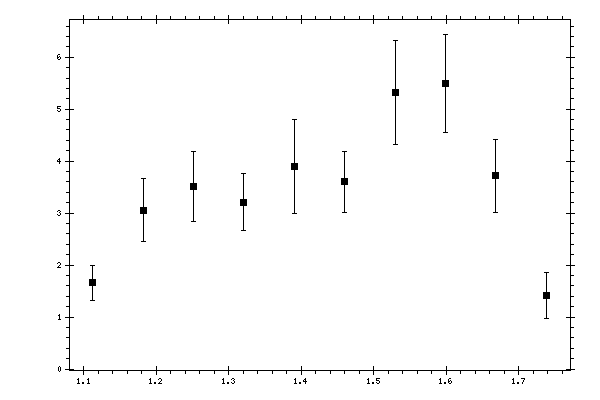

Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11259 | 1.65893 | 0.336015 |
| 1.1821 | 3.05877 | 0.606837 |
| 1.25161 | 3.52107 | 0.674469 |
| 1.32112 | 3.20934 | 0.548962 |
| 1.39063 | 3.89885 | 0.897984 |
| 1.46014 | 3.60104 | 0.589783 |
| 1.52965 | 5.31548 | 0.99833 |
| 1.59916 | 5.49824 | 0.94521 |
| 1.66867 | 3.71982 | 0.699681 |
| 1.73818 | 1.41397 | 0.436445 |
