Parameter (X axis): M(π+,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π+,p), mcb/GeV
Differential cross section, where M(π+,p) is invariant mass of π+ and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/dM(π+,p), mcb/GeV
Parameter (X axis): M(π+,p), GeV |
Click here to get data in text file, delimited with tabs.

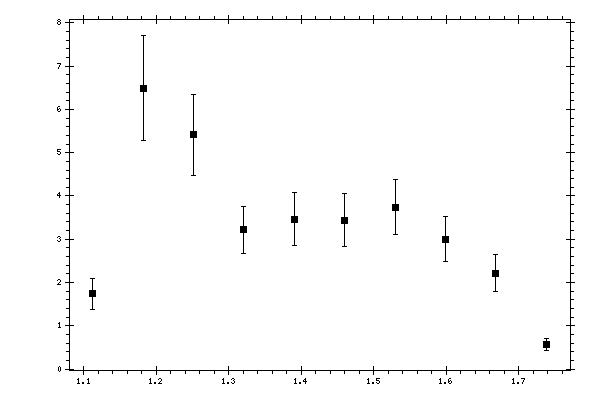

Measured data:
|
M(π+,p),
GeV |
dσ/dM(π+,p),
mcb/GeV |
Stat. error,
mcb/GeV |
|---|---|---|
| 1.11259 | 1.73696 | 0.352761 |
| 1.1821 | 6.49489 | 1.20896 |
| 1.25161 | 5.41701 | 0.934016 |
| 1.32112 | 3.21356 | 0.534692 |
| 1.39063 | 3.46225 | 0.614831 |
| 1.46014 | 3.44438 | 0.605185 |
| 1.52965 | 3.73743 | 0.639449 |
| 1.59916 | 2.99937 | 0.518994 |
| 1.66867 | 2.21368 | 0.422532 |
| 1.73818 | 0.563031 | 0.14612 |
