Parameter (X axis): θ(π−), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π−))), mcb/rad
Differential cross section, where cos(θ(π−) is cosine of the azimuthal angle of π− in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π−))), mcb/rad
Parameter (X axis): θ(π−), deg |
Click here to get data in text file, delimited with tabs.

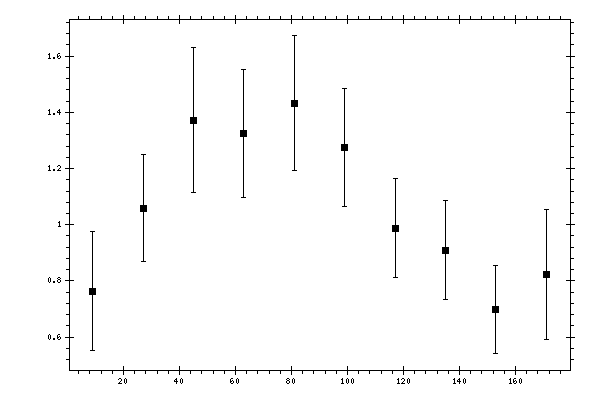

Measured data:
|
θ(π−),
deg |
dσ/d(−cos(θ(π−))),
mcb/rad |
Data errors,
mcb/rad |
|---|---|---|
| 9 | 0.762954 | 0.212523 |
| 27 | 1.05839 | 0.190605 |
| 45 | 1.37164 | 0.258325 |
| 63 | 1.32495 | 0.226838 |
| 81 | 1.43267 | 0.239843 |
| 99 | 1.27557 | 0.210079 |
| 117 | 0.987298 | 0.175799 |
| 135 | 0.910002 | 0.174797 |
| 153 | 0.699123 | 0.156353 |
| 171 | 0.821669 | 0.231647 |
