Parameter (X axis): θ(π+), deg
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/d(−cos(θ(π+))), mcb/rad
Differential cross section, where cos(θ(π+) is cosine of the azimuthal angle of π+ in CMS.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.9 GeV | |
| Ebeam : | 5.75 GeV |
|
Observable quantity measured (Y axis): dσ/d(−cos(θ(π+))), mcb/rad
Parameter (X axis): θ(π+), deg |
Click here to get data in text file, delimited with tabs.

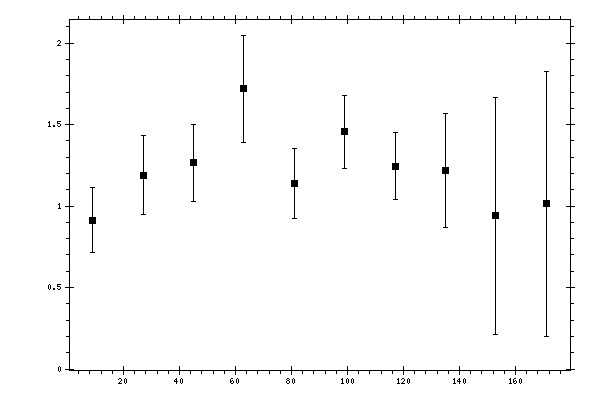

Measured data:
|
θ(π+),
deg |
dσ/d(−cos(θ(π+))),
mcb/rad |
Stat. error,
mcb/rad |
|---|---|---|
| 9 | 0.913288 | 0.198954 |
| 27 | 1.19092 | 0.240662 |
| 45 | 1.2649 | 0.234393 |
| 63 | 1.7199 | 0.330119 |
| 81 | 1.1411 | 0.215259 |
| 99 | 1.45668 | 0.22466 |
| 117 | 1.24424 | 0.206672 |
| 135 | 1.22029 | 0.349744 |
| 153 | 0.941684 | 0.727568 |
| 171 | 1.01304 | 0.811418 |
