Parameter (X axis): M(π−,p), GeV
You are not logged in.
Experiment: E1-6, 2001
Spokespersons: V. Burkert
Experiment comment: Experiment year: 2001—2002
No publications available for this experiment
Quantity measured: dσ/dM(π−,p), mcb/GeV
Differential cross section, where M(π−,p) is invariant mass of π− and p.
Beam: e, polarization: none
Target: p (Z=1, A=1), polarization: none
Final state: π+π−p, polarization: none
| Q2 : | 3.5 — 4.2 GeV2 | |
|---|---|---|
| W : | 1.925 GeV | |
| Ebeam : | 5.75 GeV |
|

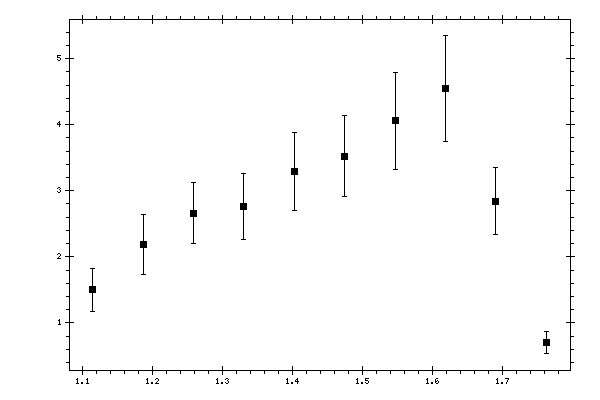

Observable quantity measured (Y axis): dσ/dM(π−,p), mcb/GeV
Parameter (X axis): M(π−,p), GeV |
Click here to get data in text file, delimited with tabs.
Measured data:
|
M(π−,p),
GeV |
dσ/dM(π−,p),
mcb/GeV |
Data errors,
mcb/GeV |
|---|---|---|
| 1.11384 | 1.4988 | 0.331814 |
| 1.18585 | 2.18344 | 0.450885 |
| 1.25786 | 2.66155 | 0.457135 |
| 1.32987 | 2.76569 | 0.497471 |
| 1.40188 | 3.29412 | 0.586238 |
| 1.47389 | 3.52576 | 0.61712 |
| 1.5459 | 4.05643 | 0.733912 |
| 1.61791 | 4.54199 | 0.80228 |
| 1.68992 | 2.84159 | 0.506869 |
| 1.76193 | 0.704059 | 0.161911 |
